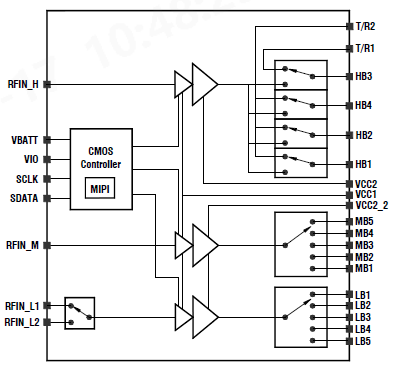

The FX5627Y is a 42-pin power amplifier module developed for high linearity applications. With advanced InGaP HBT technology, the module supports multi-band CDMA&WCDMA&FDD-LTE&TDD-LTE&5G NR application, including CDMA Bands BC0, WCDMA Band1/2/3/4/5/8, FDD-LTE&5G-NR Band1/2/3/4/5/6/7/8/12/13/14/17/18/19/20/25/26/27/28/30/66/70/71, TDD-LTE Band 34/38/39/40/41. The FX5627Y meets the stringent linearity requirements of LTE QPSK and 5G NR DFT-s-OFDM & CP-OFDM specifications.

With Lansus’s state-of-the-art technology and optimized bias table, the FX5627Y reduces current consumption significantly in both high and low power operations. Compatible with APT (Average Power Tracking) technology to extend battery life, the FX5627Y efficiency can be further improved with VCC1/VCC2 supplied from DC-DC converter, which can be set from 0.6~4.6V accordingly to different output power level.

Packaged in a 4mm x 6.8mm x 0.73mm module, the FX5627Y performs with high efficiency, high linearity, low temperature variation, strong reliability and robust ruggedness. In addition to the feature of RoHS compliant, the FX5627Y is free of hazardous substances and rated as green product.
